Engineering Pipeline Coatings as the First Line of Defense for Energy Infrastructure
H. BOYD, CRC Evans, Edinburgh, Scotland
The global energy industry continues to expand into deeper waters, harsher climates and increasingly complex operating environments, and the consequent demands placed on pipeline systems continue to intensify. Higher temperatures, fluctuating pressures, corrosive environments and challenging installation conditions all place extraordinary stress on the infrastructure. The combination of mechanical forces and thermal cycling creates coupled stresses that require protective systems capable of maintaining stability under dynamic, rather than static, conditions.
Pipeline coatings play a crucial role in maintaining the long-term reliability and performance of energy infrastructure. They serve as the first line of defense against external conditions that can compromise pipeline integrity, protecting against corrosion, mechanical damage and thermal loss. As infrastructure continues to be deployed in challenging environments, coating solutions must be tailored with precision to ensure safety, efficiency and asset longevity.
Functions of pipeline coatings. Pipeline coatings typically address three main requirements. Anti-corrosion protection prevents the degradation of steel surfaces caused by exposure to seawater, soil chemistry or transported media. Mechanical protection safeguards against impact and abrasion—an essential consideration when pipelines cross uneven terrain, are laid in shallow waters susceptible to impact from fishing or dropped objects or face handling damage during installation. Thermal insulation provides control over heat transfer, ensuring transported products maintain operational temperatures while minimizing environmental heat loss.
To meet these demands, specialist field joint coating contractors offer and apply a wide range of coatings. Fusion bonded epoxy (FBE) is a well-established anti-corrosion system used onshore and offshore. Polyethene (PE) and polypropylene (PP) provide mechanical reinforcement on top of anti-corrosion layers, protecting against handling and impact damage. Polypropylene, polystyrene and polyurethane are the basis of three of the most commonly—though not exclusively—used materials for insulation of pipelines. Heat-shrink sleeves are also a practical solution for field joints, both for onshore and offshore projects.
Each coating system responds to specific operational and environmental challenges. Selecting the right combination is essential for ensuring that pipelines can withstand decades of service under variable conditions.
Onshore and offshore differences. The coating requirements for onshore pipelines are generally less complex, with FBE, PE/PP wraps, paints and heat-shrink sleeves meeting many operational needs. Onshore coatings typically face ambient temperatures, predictable soil compositions and installation environments that allow for controlled application and curing. While onshore challenges such as rocky terrain, cold-weather installation or high groundwater salinity still require careful engineering, the range of proven systems available makes specification relatively straightforward.
However, applications for the offshore environment present significantly greater technical challenges.
Subsea pipelines operate in an environment where seawater may be 4°C or lower, while transported products can exceed 150°C. To manage these extremes, multi-layer insulation systems are often applied, using polyurethane, polystyrene, polypropylene or silicone-composite syntactic materials or foams, in thicknesses of up to 120 mm. These layers help maintain temperature stability and prevent issues such as wax deposition or hydrate formation. In addition, high-performance FBE systems are specified to provide robust corrosion resistance. Pipelines operating at elevated temperatures require specialized materials and processes to ensure reliable long-term performance.
Every offshore project introduces unique variables: differing water depths, seabed geology, installation methods and operating temperatures all influence coating selection. Thermal properties become especially critical where flow assurance models indicate a risk of solid formation or heat loss. Mechanical strength is also vital, as subsea pipelines must withstand installation loads, abrasion from the seabed and fatigue when they are moving in subsea currents, rising to the surface as a steel catenary riser and, occasionally, engaging in free-span movement.
Importance of quality and testing. Ensuring coating performance under such demanding conditions is paramount and requires rigorous validation. Procedure qualification testing (PQT) and pre-production testing (PPT) are mandatory for the industry’s safety and efficiency, as these test programs verify the compatibility of coating materials, equipment and application techniques.
Testing often has to include full-scale testing such as bend, clamp, impact and fatigue tests, as well as temperature and pressure simulations to replicate installation stresses, subsea environment simulations to assess long-term resistance and small-scale material evaluations to verify curing behavior and adhesion. Historic performance data from previously qualified systems can also provide an additional layer of assurance. By combining laboratory results with field-proven data, we ensure that coating solutions not only meet but also sustain client specifications throughout the asset lifecycle.
These testing programs mirror the stresses a pipeline encounters during real-world operations: laying over stingers roller supports, bending during reeling, clamping in tensioners, thermal expansion, hydrotesting and long-term immersion. Validating coatings in conditions that simulate these events is essential for predicting long-term performance and ensuring reliability during installation.

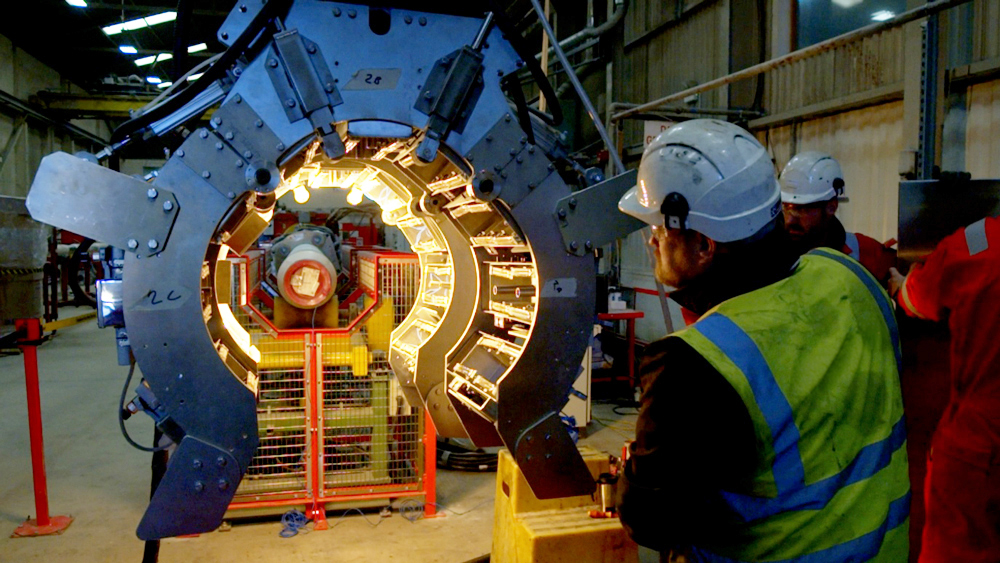

Engineering and innovation. A key advantage in the coating sector is the ability to act as both an applicator and an innovator. Some contractors have engineered proprietary application systems, such as the Raptor II (combined heating and FBE coating equipment) and injection molded PP (IMPP) systems.
Innovations are not driven in isolation but informed by a global database of operational performance data accumulated over decades and the increasingly complex infrastructure needs. This iterative approach enables the sector to continually refine its systems and respond to new technical requirements emerging in the oil, gas and renewable energy sectors.
The combination of engineering capability and field experience is particularly valuable, as the industry transitions toward more demanding operating environments. Whether supporting deepwater projects, high-pressure/high-temperature pipelines, carbon dioxide (CO2) transport lines or emerging hydrogen infrastructure, coating systems must continue to evolve. Materials research, process refinement and predictive modeling all play a role in achieving consistent, high-quality coating performance.
A technical contribution to projects. Although coating systems are often client-specific, technical coating teams contribute at every stage of the project. During tendering and project planning, experts provide guidance on selecting the most appropriate materials for expected operating temperatures, pressures and environmental conditions, with risk mitigation serving as a key input. They also recommend curing and application techniques suited to site-specific constraints, whether onshore construction yards or offshore fabrication sites.
This technical oversight ensures that coatings are not only correctly applied but are also optimized for the realities of field operations.
Field joint coatings, in particular, benefit from early engineering input. Matching performance characteristics with the parent coating system—thermal properties, adhesion and durability—requires careful selection and process control. By addressing these details early, project teams can reduce schedule risk and ensure compliance with design requirements.
Takeaway. As pipelines extend into more extreme conditions, the demands placed on coating systems will only increase. Meeting these challenges requires not just proven materials but also rigorous testing, innovative application systems and technical expertise integrated throughout the project lifecycle.
When field-proven systems, proprietary technology and specialist knowledge are combined, coating solutions can be designed to safeguard infrastructure performance in both onshore and offshore environments. Such an approach helps ensure that coatings deliver consistent protection, durability and efficiency, contributing directly to the long-term integrity of critical energy assets.
As operating demands continue to increase, so too does the need for coating systems that deliver predictable, repeatable performance under pressure. Maintaining that standard requires a commitment to rigorous testing, disciplined application and continuous technical refinement across every stage of the project.
NOTE
a. CRC Evans' Solaris
HELEN BOYD has more than 30 yrs of experience in coatings, testing, equipment development and coating application, working as an independent witness, trainer, test program designer and external expert. She has worked extensively in the oil and gas industry, both in the field, on pipelay and construction vessels, and onsite in various locations around the world. She is also the chairwoman of the pipeline coating group of NEN (the Dutch standardization institution), as well as a member of the International Standards Organization working group for wet insulation, anticorrosion coating and field joint coating series of ISO standards.
Throughout her career, Boyd has developed deep expertise in anti corrosion and insulation coatings for offshore subsea pipelines and structures. Within innovation, she has established and run test programs for reeling various pipe configurations to define the envelopes within which reeling can be safely performed. She has published several papers on these subjects and has presented at several conferences, including ISOPE, OMAE and OPT.
